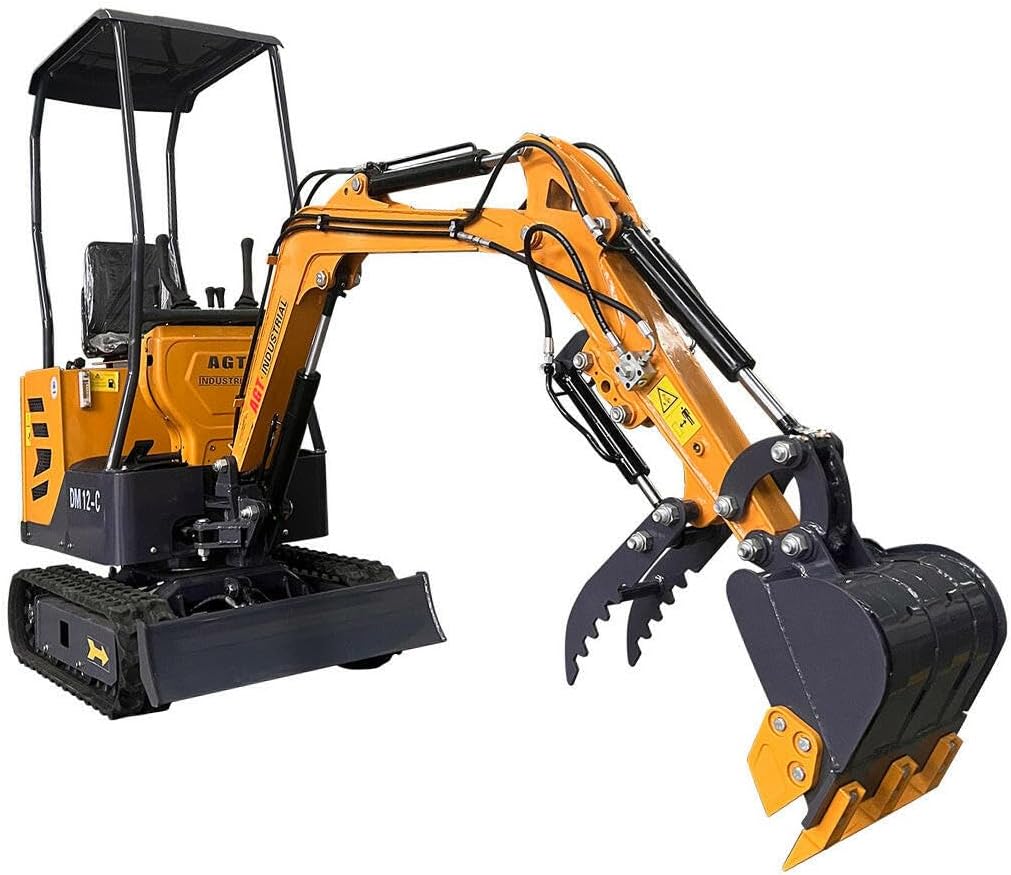

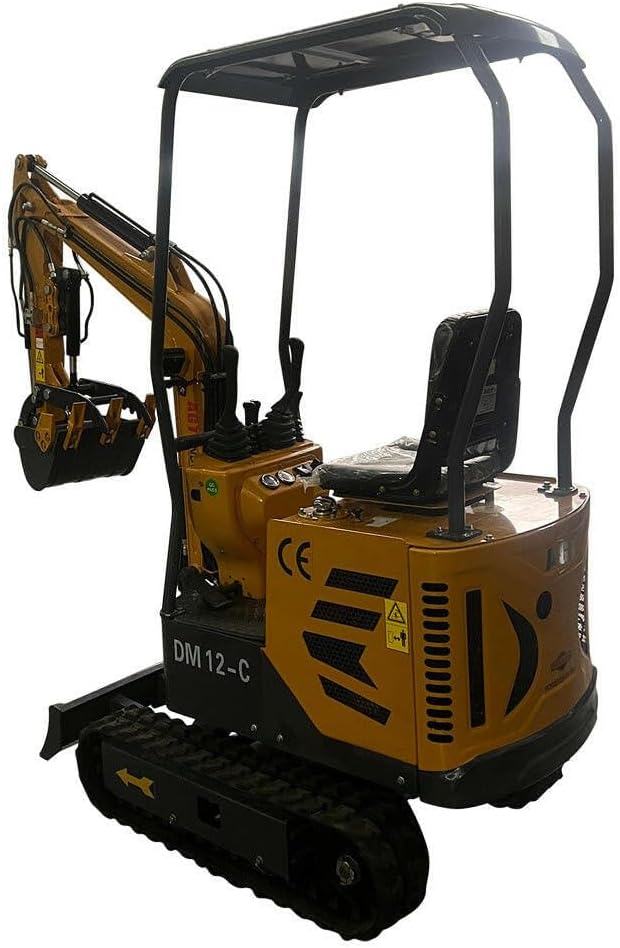

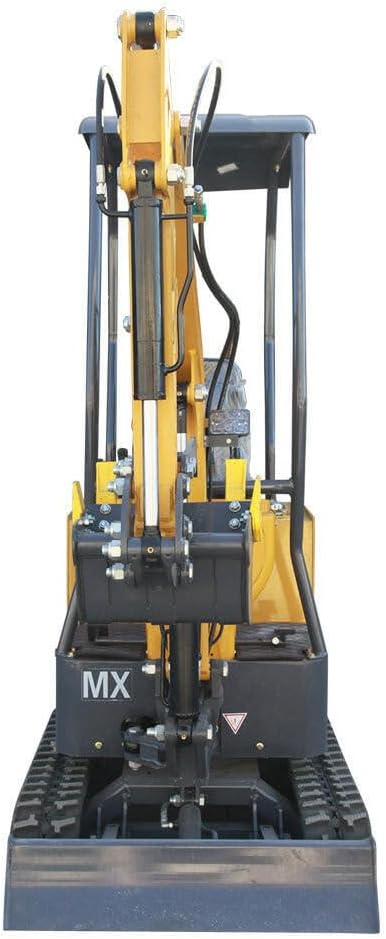

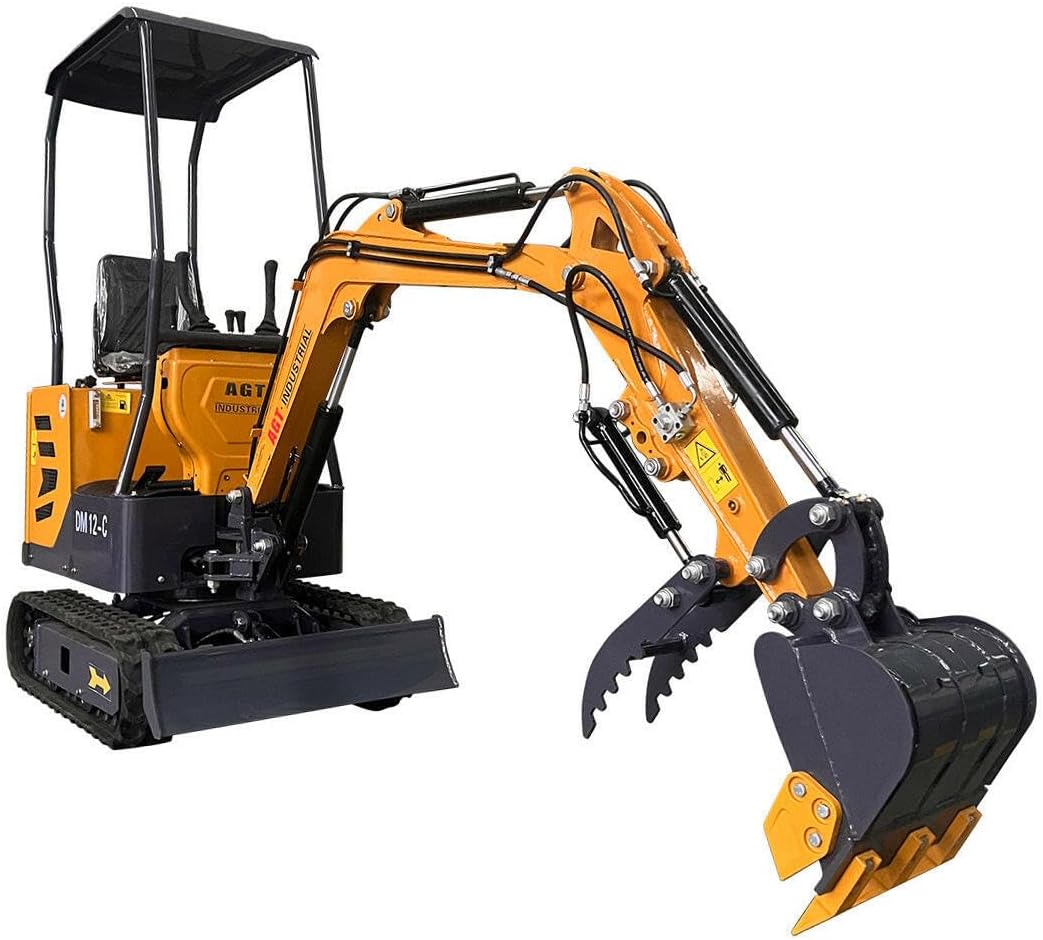

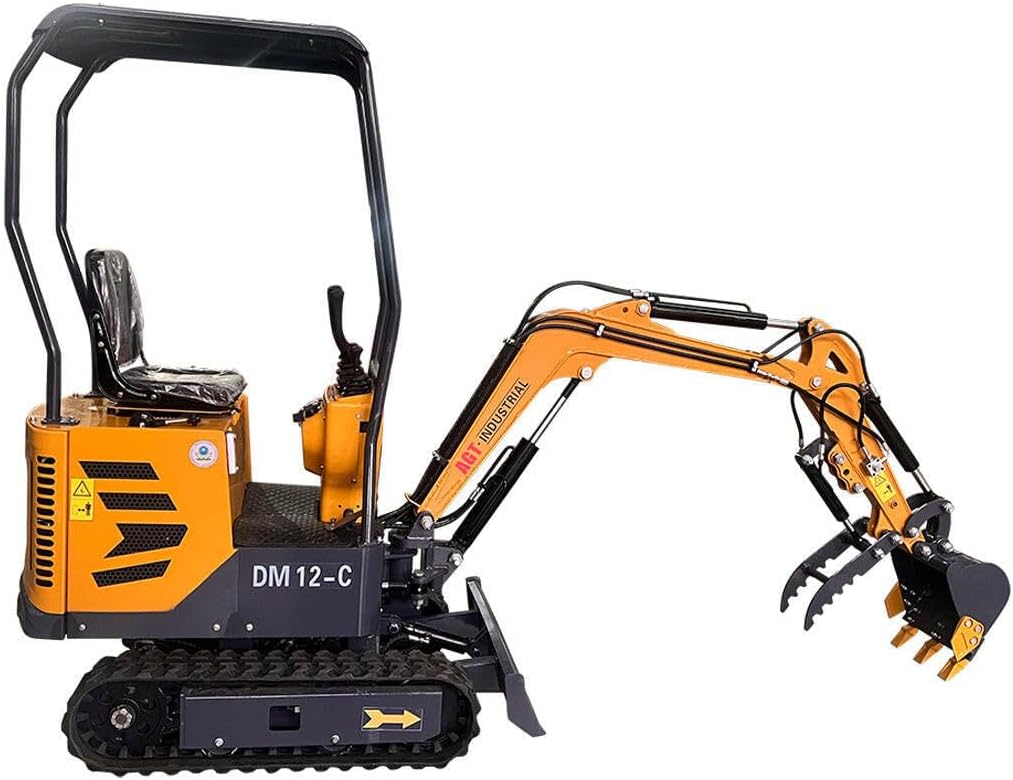

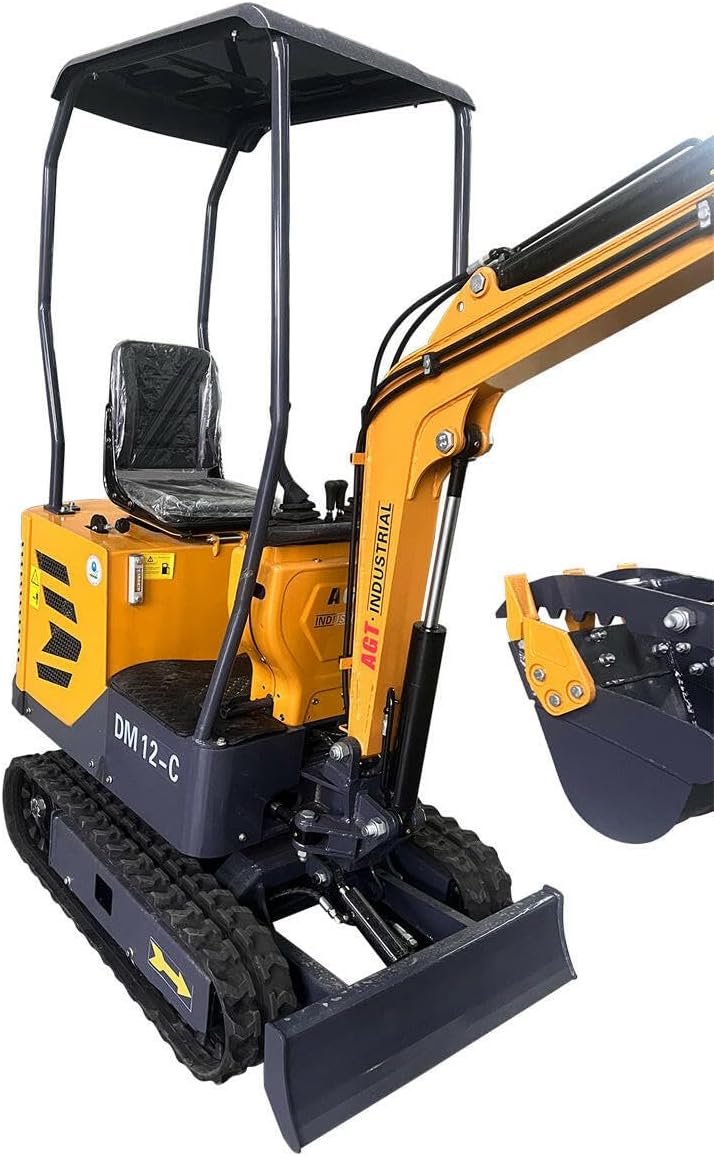

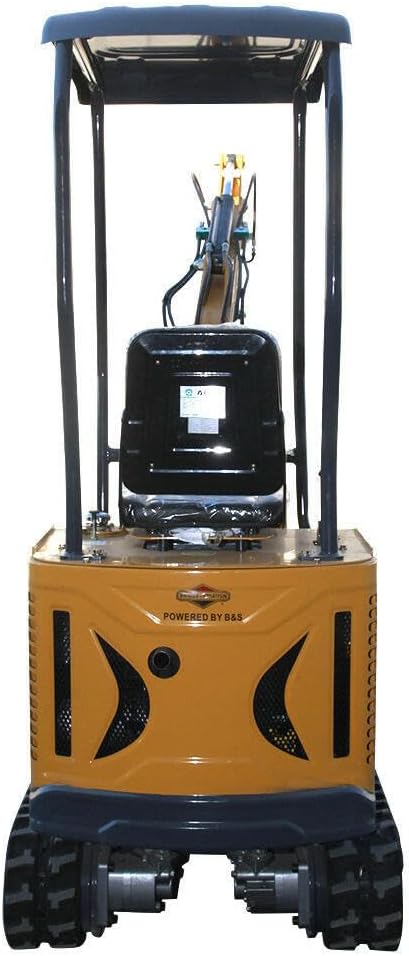

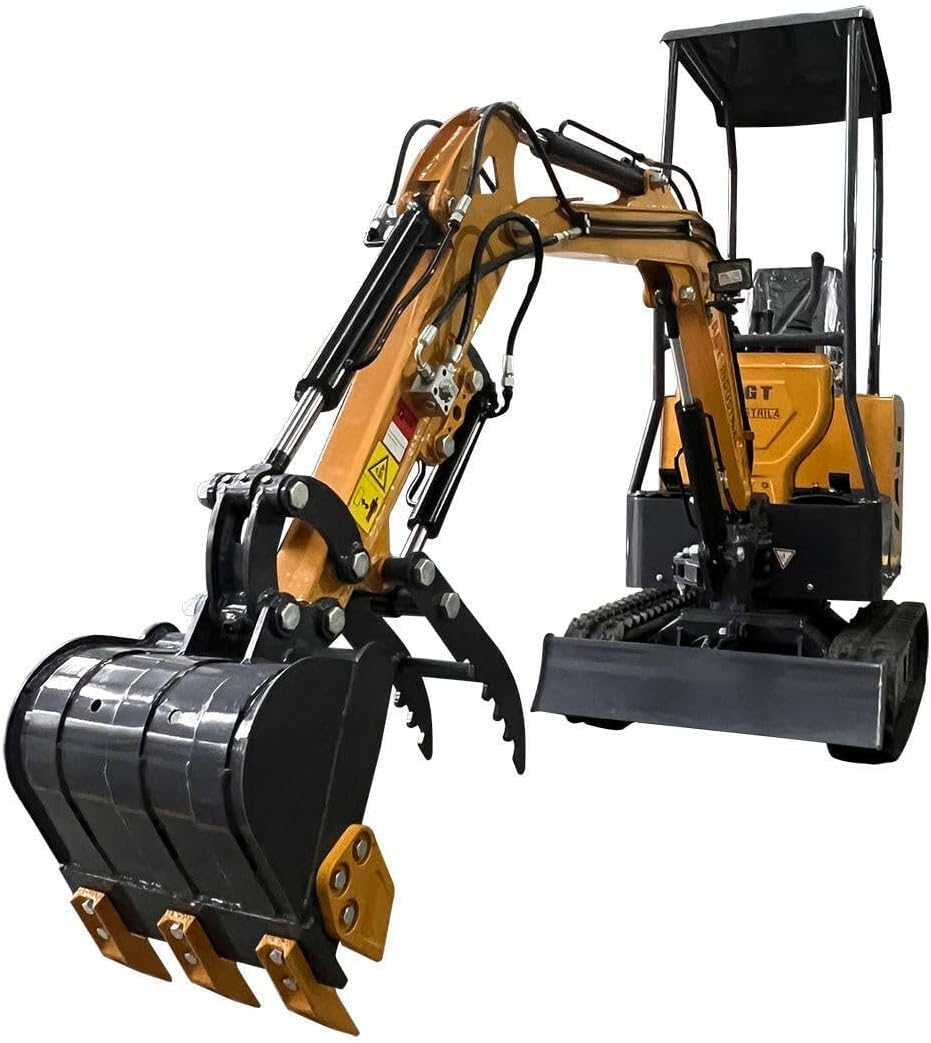

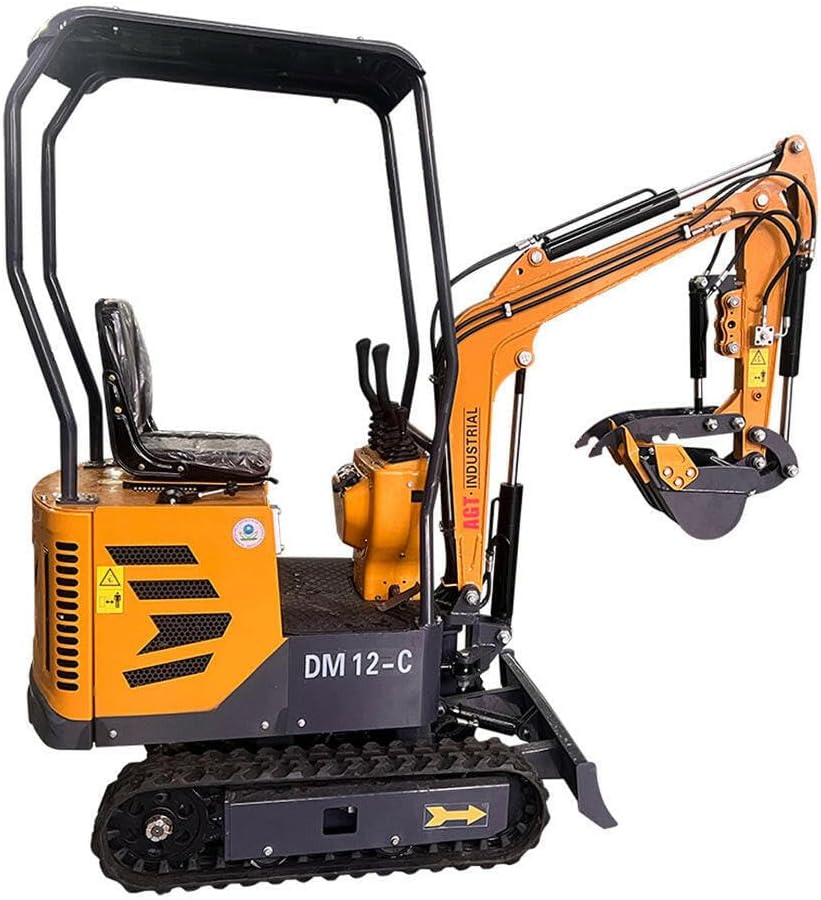

Designed for small and medium-sized projects. With a compact design, 1-ton operating weight, and a maximum digging depth of 5.41 feet, AGT Mini Excavator has a compact and reliable design that ensures easy maneuverability in small areas such as farms, gardens, public spaces, parks, orchards, and farms.
Features:
Operating Weight: 0.959 Ton (1,918 lbs)
Engine Brand: B&S
Horsepower: 13.5 HP
Maximum Angle: 30°
Technical Data:
Body Dimensions: 2260 mm x 958 mm x 2200 mm
Bucket Width: 359 mm
Bucket Capacity: 0.025 m³
Walking Speed (Low/High): 0-2 km/h
Grounding Specific Pressure: 32 Kpa
Fuel Tank Capacity: 6.6 L
Hydraulic Oil Tank Capacity: 18 L
Rated Set Pressure: 16 MPa
Max. Flow Rate of Main Pump: 21.6 L/min
Multi-Circuit Valve: 8 Multiway Valve
Multiway Valve Brand: North
Max. Set Pressure: 16 MPa
Traveling Hydraulic Motor Type: BM6-310
Traveling Motor Brand: IC Base
Motor Displacement: 310
Rotary Hydraulic Motor Type: BM2-250
Tensioning Form: Mechanical Tension
Maximum Digging Radius: 3,080 mm (121.26 in)
Maximum Digging Depth: 1,764 mm (69.45 in)
Maximum Digging Height: 2,670 mm (105.12 in)
Maximum Unloading Height: 1,900 mm (74.8 in)
Climbing Ability: 30%
